DALSP-T
Elegant and cleverly designed, the DALSP-T 6P6 is the ideal LED lighting solution for common areas and offices. It provides incomparable visual comfort thanks to a perfect diffusion of light. The DALSP-T 6P6 advantageously replaces the old lighting solutions equipped with fluorescent tubes.
Points forts
- Suitable to the standard dimension of modular ceilings
- Elegant solution
- Perfect light diffusion
- Replace advantageously fluorescent technology
- Lifetime: 50 000 hours
Téléchargements
LED LIGHTING SOLUTION FOR OFFICES AND GENERAL LIGHTING
Innovation

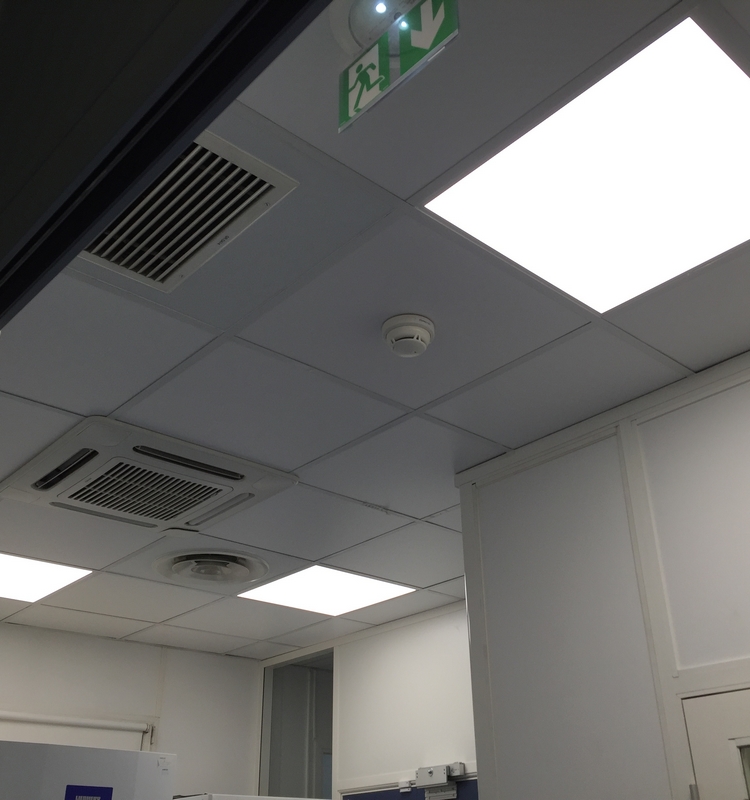

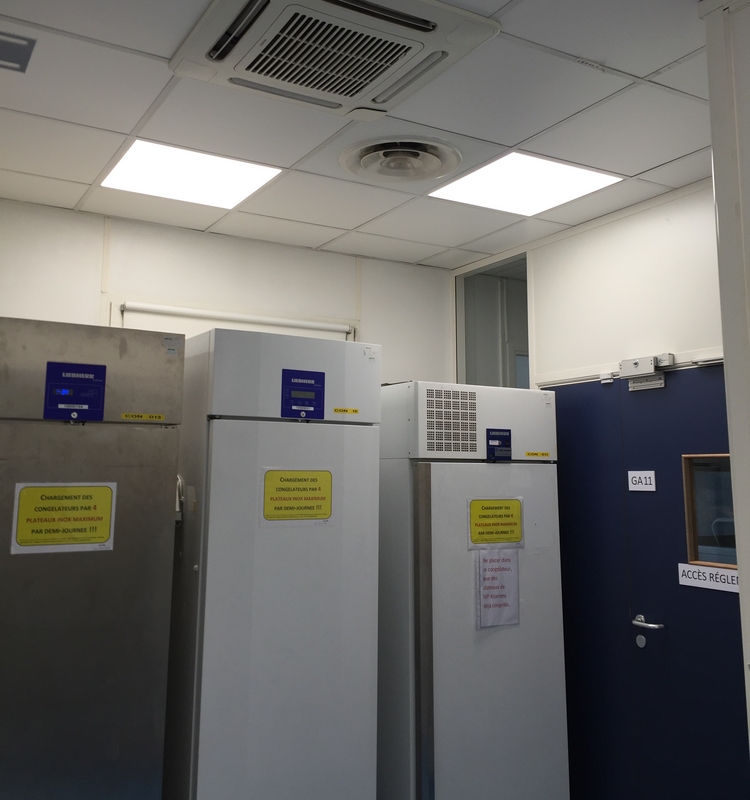

Led lighting using the last available LED technology. The DALSP-T-6P6 with its 12mm depth can be installed as a recessed, suspended or surface mounted solution on T25 grid modular ceiling or partitions.
Savings
Its low power consumption, its 50 000 hours lifetime (L80), are providing strong advantages to the DALSP-T-6P6 compared to old fluorescent technology and is actively contributing to reduce operating costs.
Polyvalence
With a sober and elegant shape, the DALSP-T-6P6 is a quality lighting alternative for all areas with low constraints.
Material
IP54 lighting fixture in white aluminium.
Mounting
The DALSP-T-6P6 is usually mounted onto T25 grid structure and can also be mounted on surfaces or suspended using metallic wires.
It can be adapted to the configuration of the rooms or to your own requirements.
Power supply
The DALSP-T-6P6 is powered by an external power converter which will be connected to the main 230VAC – 50 Hz.
| Technical specifications | |
| Dimensions L x W x H | 595 x 595 x 12 mm |
| Weight | 2 kg |
| Lifetime (L80B10) | 50 000 hours |
| Colour temperatures | Cool White 6000°K (BF), Neutral White 4000°K (BN) |
| Diffuser | Opal |
| Luminous flow | 4000 Lumens |
| Power | 40 Watts |
| Operating temperatures | - 35°C to + 60°C |
| UGR | < 19 |
| Electric insulation | Class II |
| Photobiologic risk | Groupe 0 |
| Guaranty | 5 years |
