DOWNLIGHT

Extra slim, D03W, D06W and D09W downlights are completing harmoniously LUCISBIO’s lighting solutions for offices and general lighting. They are an economical alternative to fluorescent lights.

DOWNLIGHT
DOWNLIGHT

Key points

  • Extra slim
  • Real alternative to fluorescent lights
  • Lifetime of 50 000 hours
  • Available in various light flow and dimensions.

LED DOWNLIGHT FOR OFFICES AND GENERAL LIGHTING

Design

With a clean and an aesthetic look, D12W, D15W, D18W and D24W quality led lighting are harmoniously completing LUCISBIO range of lighting solutions.

Savings

Easy to install, with a 50 000 hours lifetime (L80), D12W, D15W, D18W and D24W downlights with their low consumption are participating to the operating costs reduction.

Polyvalence

With a 12mm depth, they can be perfectly integrated on ceiling and partitions. Available in cool white, neutral white of warm white, D12W, D15W, D18W and D24W downlights are bringing a satisfying and pleasant luminous effect in rooms where they are fitted.

Material

White Painted aluminium frame with a PMMA diffuser.

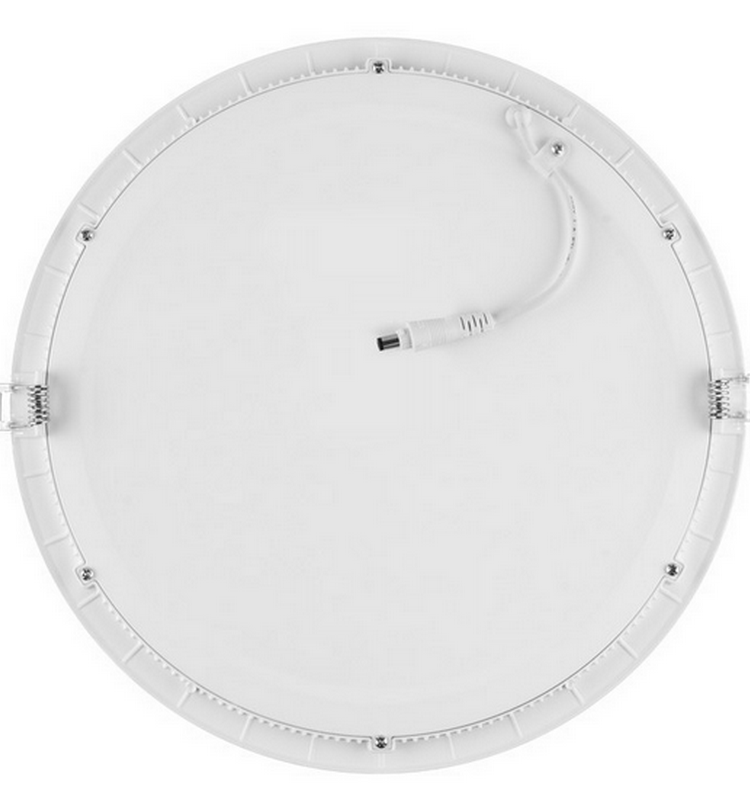

Mounting

2 side arms on springs are maintaining the downlight.

Power supply

D12W, D15W, D18W and D24W downlights are powered with a provided external power converter which will be connected to the main 230VAC – 50 Hz.

Technical specifications
Dimensions Ø x H 170 x 12 / 195 x 12 / 225 x 12 / 300 x 12 mm
Cutting aperture Ø 150 mm / 170 mm / 205 mm / 275 mm
Lifetime (L70B10) 50 000 hours
Colour temperatures Cool White 6000°K (BF), Neutral White 4000°K (BN)
Luminous flow 1200 / 1500 / 1800 / 2400 Lumens
Power 12 / 15 / 18 / 24 Watts
IP 54
Operating temperatures - 35°C to + 60°C
UGR < 19
Lighting angle 180 degrees
Electric insulation Class II
Guaranty 2 years
